Pennylane wprowadzenie

import torch
import matplotlib.pyplot as plt
from IPython.display import clear_output

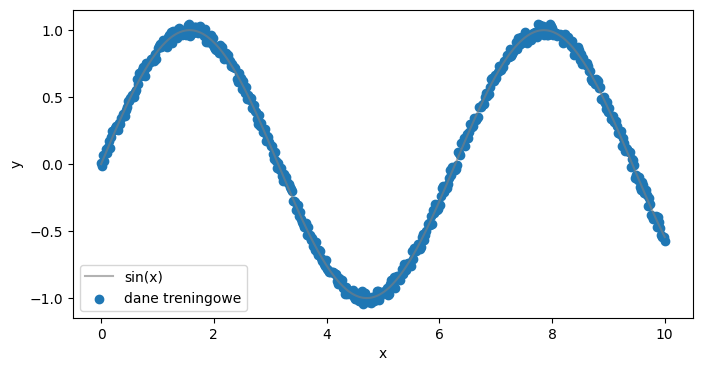

x = torch.linspace(0,10,500).view(-1,1)

si = torch.sin(x).view(-1,1)

y = si + 0.1*(torch.rand(500).view(-1,1)-0.5)


plt.figure(figsize=(8,4))
plt.plot(x, torch.sin(x).view(-1,1), color="tab:grey", alpha=0.6, label="sin(x)")
plt.scatter(x, y, label="dane treningowe")
plt.xlabel('x')
plt.ylabel('y')
plt.legend()
plt.show()

class QN(torch.nn.Module):
    '''Classical -> Quantum -> Classical'''

    def __init__(self, N_INPUT: int, N_OUTPUT: int, Q_NODE, N_QUBITS):
        super().__init__()

        self.layers = torch.nn.Sequential(
            # input layer
            torch.nn.Linear(N_INPUT, N_QUBITS),
            # 1st hidden layer as a quantum circuit
            Q_NODE,
            # output layer
            torch.nn.Linear(N_QUBITS, N_OUTPUT)
        )


    def forward(self, x):
        return  self.layers(x)

import pennylane as qml

n_qubits = 3
dev = qml.device("default.qubit", wires=n_qubits)

@qml.qnode(dev)
def qnode(inputs, weights):
    qml.AngleEmbedding(inputs, wires=range(n_qubits))
    qml.BasicEntanglerLayers(weights, wires=range(n_qubits))
    return [qml.expval(qml.PauliZ(wires=i)) for i in range(n_qubits)]

n_layers = 3

weight_shapes = {"weights": (n_layers, n_qubits)}
qlayer = qml.qnn.TorchLayer(qnode, weight_shapes)

qmodel = QN(1, 1, qlayer, n_qubits)

learning_rate=1e-3

optimiser = torch.optim.Adam(qmodel.parameters(), lr=learning_rate)
criterion = torch.nn.MSELoss()

losses = []

x[:5], y[:5]

(tensor([[0.0000],
         [0.0200],
         [0.0401],
         [0.0601],
         [0.0802]]),
 tensor([[ 0.0067],
         [-0.0128],
         [ 0.0702],
         [ 0.0238],
         [ 0.1135]]))

qmodel.train()
prediction = qmodel(x)
prediction[:5]

tensor([[-0.3303],
        [-0.3310],
        [-0.3316],
        [-0.3323],
        [-0.3329]], grad_fn=<SliceBackward0>)

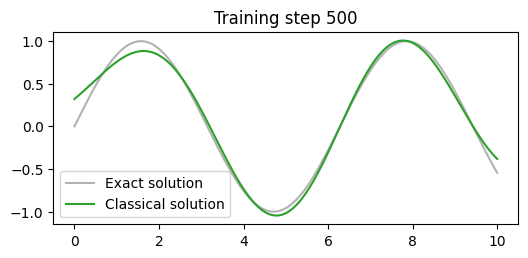

def callback(model, loss):
    losses.append(loss.item())

    clear_output(wait=True)
    prediction = model(x).detach()
    plt.figure(figsize=(6,2.5))
    plt.plot(x[:,0].detach(), torch.sin(x)[:,0].detach(), label="Exact solution", color="tab:grey", alpha=0.6)
    plt.plot(x[:,0].detach(), prediction[:,0], label="Classical solution", color="tab:green")
    plt.title(f"Training step {len(losses)}")
    plt.legend()
    plt.show()

    plt.figure(figsize=(6,2.5))

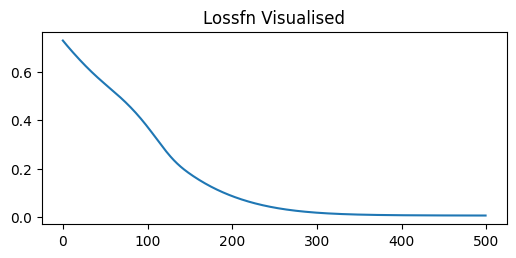

    plt.title('Lossfn Visualised')
    plt.plot(losses)
    plt.show()


def train(X, Y, model, optimiser, epochs, lossfn, callback = None):
    for _ in range(epochs):
        model.train()
        prediction = model(X)
        loss = lossfn(prediction, Y)

        optimiser.zero_grad()
        loss.backward()
        optimiser.step()
        model.eval()
        if callback != None:
            callback(model, loss)

train(x, y, qmodel, optimiser,500, criterion, callback)

🧠 PennyLane

🔗 Strona oficjalna

PennyLane to otwarto‑źródłowa biblioteka Pythona opracowana przez Xanadu dla kwantowego uczenia maszynowego, obliczeń kwantowych oraz chemii kwantowej.

Zapewnia wysokopoziomowy, intuicyjny interfejs do budowania hybrydowych modeli kwantowo‑klasycznych, łącząc obwody kwantowe z popularnymi frameworkami uczenia maszynowego, takimi jak PyTorch i TensorFlow.

PennyLane wprowadza pojęcie QNode (quantum node) – funkcji kwantowych, które zachowują się jak zwykłe funkcje Pythona i obsługują automatyczną różniczkowanie (autodiff).

Umożliwia uruchamianie modeli zarówno na symulatorach, jak i na rzeczywistym sprzęcie kwantowym (np. IBM Q, Amazon Braket i inne).

Dzięki PennyLane możesz: - budować wariacyjne algorytmy kwantowe,
- trenować kwantowe sieci neuronowe,
- eksplorować zaawansowane architektury kwantowego uczenia maszynowego.

Biblioteka stanowi potężny most między klasyczną sztuczną inteligencją a rosnącym światem obliczeń kwantowych.

PennyLane zawiera także spersonalizowaną wersję NumPy (pennylane.numpy), która obsługuje tablice śledzone gradientem, co ułatwia integrowanie obwodów kwantowych w procesach optymalizacji.

podstawowe importy bibliotek

import pennylane as qml
import pennylane.numpy as np

🧪 Obwody kwantowe w PennyLane

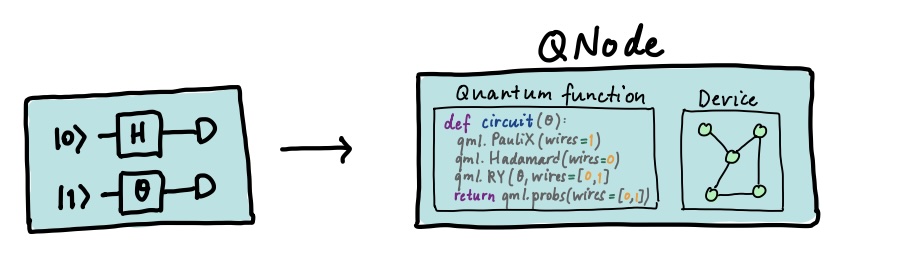

Obwody kwantowe są implementowane jako funkcje kwantowe, zwane także QNode’ami.
Są to funkcje kwantowe zachowujące się jak standardowe funkcje Pythona i wspierające automatyczną różniczkację przy użyciu klasycznych narzędzi ML.
QNode’y są uruchamiane na różnych urządzeniach (devices), takich jak:
- symulatory (np. default.qubit, lightning.qubit) oraz,
- rzeczywisty sprzęt kwantowy (np. IBM Q, Amazon Braket, Xanadu).
Urządzenia są wymienne i określają, w jaki sposób dana funkcja kwantowa jest wykonywana.

🔗 Urządzenia, które możesz używać

Możemy zdefiniować nasz symulator — w tym przypadku użyjemy default.qubit.
Musimy także określić, ile kubitów chcemy użyć, korzystając z parametru wires.

Przykładowe urządzenia

default.qubit – symulator napisany w Pythonie
lightning.qubit – szybszy symulator napisany w C++
default.mixed – używany do symulacji mieszanych stanów kwantowych

dev = qml.device("default.qubit", wires=1)

## for example
dev2 = qml.device("default.qubit", wires=3)

dev3 = qml.device("lightning.qubit", wires=['q1', 'aux'])

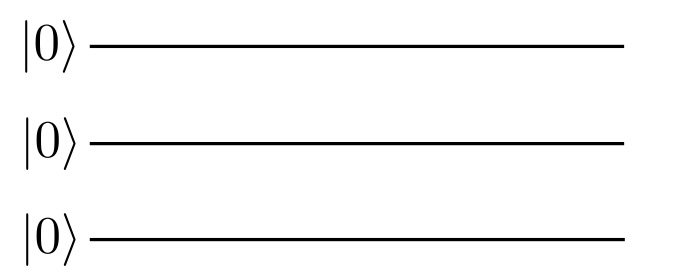

\[ \ket{000} = \ket{0}\otimes \ket{0} \otimes \ket{0} \]

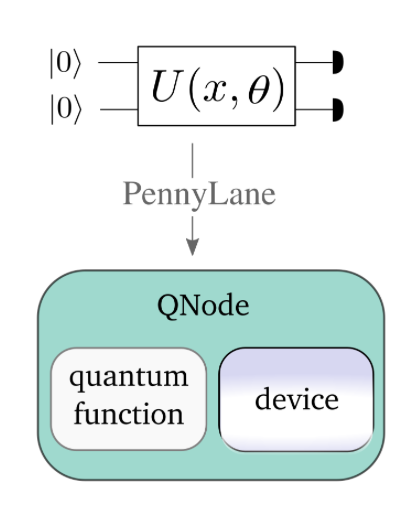

Obiekt Qnode będziemy używać do definicji obwodów kwantowych. Obiekt ten wspiera wiele bibliotek do obliczeń numerycznych, tzw. interfejsów: - NumPy, - PyTorch, - TensorFlow, - JAX

Domyślnie QNodes używa interfejs NumPy. Dzięki niemu mamy dostęp do optymalizatorów domyślnych z biblioteki Pennylane. Pozostałe interferjsy wymagają użycia optymalizatorów z innych pakietów.

def qc(): # quantum circuit
    return qml.state()

wires oznacza kwantowy podsystem - czyli nasz pojedynczy kubit. Liczymy od 0 nie od 1.

Funkcja kwantowa może pobierać klasyczne pamaretry
Funkcja kwantowa może zawierać klasyczny flow (przepływ) twojego programu for czy if else.

Zbiór kwantowych operatorów

Uruchomienie obwodu kwantowego

Uruchomienie odbywa się po wyborze device z określeniem ilości kubitów (wires)

circ = qml.QNode(qc, dev)
circ()

array([1.+0.j, 0.+0.j])

\[ \ket{\psi} = \ket{0} = [1,0]^{T} \]

circ2 = qml.QNode(qc, dev2)
circ2()

array([1.+0.j, 0.+0.j, 0.+0.j, 0.+0.j, 0.+0.j, 0.+0.j, 0.+0.j, 0.+0.j])

circ3 = qml.QNode(qc, dev3)
circ3()

array([1.+0.j, 0.+0.j, 0.+0.j, 0.+0.j])

dev = qml.device("default.qubit", wires=1)

def quantum_circuit():
    qml.Hadamard(wires=0)
    return qml.state()

circ = qml.QNode(quantum_circuit, dev)

circ()

array([0.70710678+0.j, 0.70710678+0.j])

from math import sqrt
print(circ()[0].real, 1/sqrt(2))
print(circ()[0].real == 1/sqrt(2))

0.7071067811865475 0.7071067811865475
True

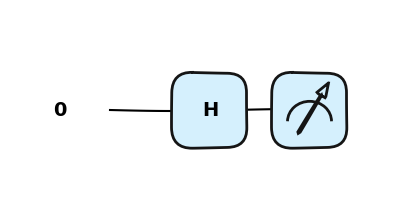

qml.draw(circ)()

qml.draw_mpl(circ)()

Inna wersja

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev)
def qc():
    qml.Hadamard(wires=0)
    return qml.state()

qc()

array([0.70710678+0.j, 0.70710678+0.j])

import matplotlib.pyplot as plt

qml.drawer.use_style("pennylane_sketch")

fig, ax = qml.draw_mpl(qc)()
plt.show()

Matplotlib is building the font cache; this may take a moment.

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev)
def qc():
    qml.Hadamard(wires=0)
    return qml.probs()

qc()

array([0.5, 0.5])

DLa pustego obwodu

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev)
def qc():
    return qml.probs()

results = qc()
results

array([1., 0.])

użyj qml.sample() lub qml.counts() dla innych wariantów wyników.

Ilość wykonań obwodu sterowana jest w QNode za pomocą parametru shot, który może być liczbą jak również listą liczb. > Uwaga w wersji biblioteki <0.43 - parametr shot ustawiany jest na poziomie device.

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev, shots=5)
def qc():
    qml.Hadamard(wires=0)
    return qml.sample()

qc()

array([[1],
       [0],
       [0],
       [0],
       [1]])

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev, shots=100)
def qc():
    qml.Hadamard(wires=0)
    return qml.counts()

results = qc()

results

{np.str_('0'): np.int64(54), np.str_('1'): np.int64(46)}

Kod naszej wartwy ukrytej w której użyliśmy obwodu kwantowego realizował następujące obiekty i funkcje:


import pennylane as qml

n_qubits = 2
dev = qml.device("default.qubit", wires=n_qubits)

@qml.qnode(dev)
def qnode(inputs, weights):

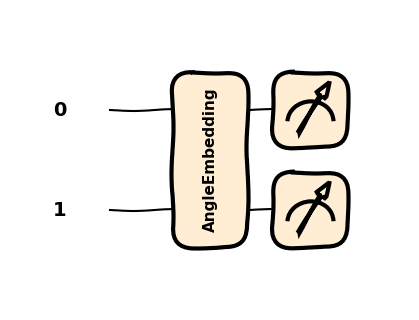

    qml.AngleEmbedding(inputs, wires=range(n_qubits))
    qml.BasicEntanglerLayers(weights, wires=range(n_qubits))
    return [qml.expval(qml.PauliZ(wires=i)) for i in range(n_qubits)]

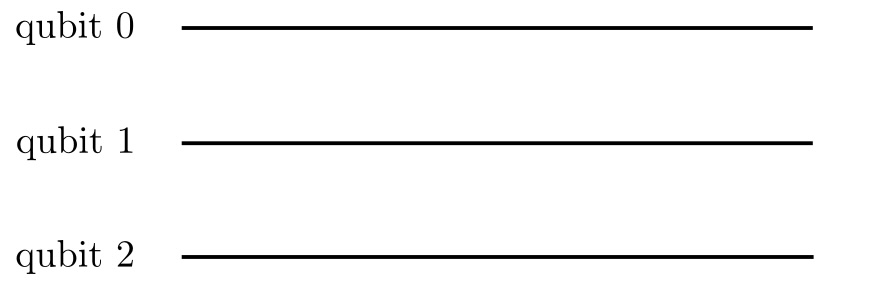

Obwody kwantowe składają się z rejestrów, które reprezentują poszczególne kubity.

Domyślnie kubity inicjalizujemy w stanie 0.

Operacje wykonywane na kubitach nazywamy bramkami.

Operacje te można wykonywać na jednym albo i wielu kubitach na raz.

Domyślnie będziemy optymalizować algortymy aby składały się z jak najmniejszej ilości bramek działających na dużą liczbę kubitów.

Graficznie można rozumieć realizację algorytmu jako stosowanie bramek na poszczególnych kubitach.

W bibliotece PennyLane, obwody kwantowe reprezentowane są przez kwantowe funkcje, realizowane przez klasyczne funkcje w pythonie.

Schemat kodu penny lane możemy zapisać jako:

import pennylane as qml

def my_quantum_function(params):

    # Single-qubit operations with no input parameters
    qml.Gate1(wires=0)
    qml.Gate2(wires=2)

     # Two-qubit operation with no input parameter on wires 0 and 1
    qml.TwoQubitGate1(wires=[0, 1])

    # A single-qubit operation with an input parameter
    qml.Gate3(params[0], wires=2)


    # Two-qubit operation with an input parameter on wires 0 and 1
    qml.TwoQubitGate2(params[1], wires=[1, 2])
    ...

    # Return the result of a measurement
    return qml.Measurement(wires=[0, 1])

Matematycznie całość możemy zapisać jako:

Przykładowo

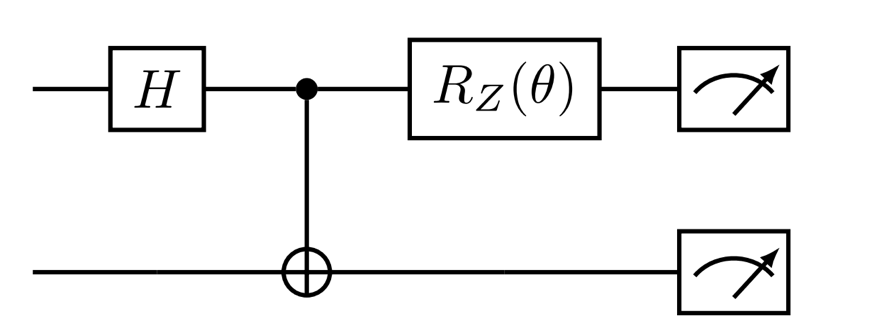

import pennylane as qml
from pennylane import numpy as np

dev = qml.device("default.qubit", wires=2)
#dev = qml.device("default.qubit", wires=2, shots=1000)

@qml.qnode(dev)
def circ(theta):
    qml.Hadamard(wires = 0)
    qml.CNOT(wires = [0,1])
    qml.RZ(theta, wires = 0)
    return qml.state()
#    return qml.probs(wires = [0,1])

circ(np.pi)

array([4.32978028e-17-0.70710678j, 0.00000000e+00+0.j        ,
       0.00000000e+00+0.j        , 4.32978028e-17+0.70710678j])

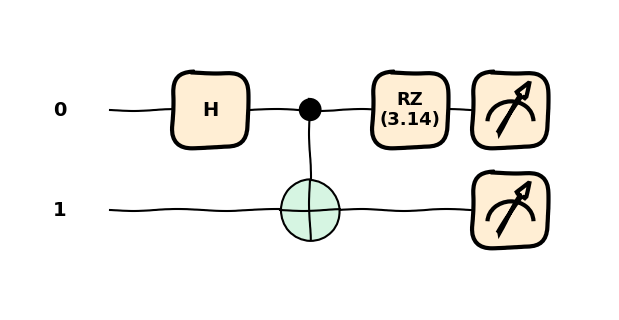

print(qml.draw(circ)(np.pi))

0: ──H─╭●──RZ(3.14)─┤  State
1: ────╰X───────────┤  State

qml.draw_mpl(circ, decimals=2, style="sketch", level="device")(np.pi)

Bramka X

Bramka X-gate reprezentowana jest przez macierz Pauli-X :

\[ X = \begin{pmatrix} 0 & 1 \\ 1 & 0 \\ \end{pmatrix} \]

Bramka X obraca kubit w kierunku osi na sferze Bloch’a o \(\pi\) radianów. Zmienia \(|0\rangle\) na \(|1\rangle\) oraz \(|1\rangle\) na \(|0\rangle\). Jest często nazywana kwantowym odpowiednikiem bramki NOT lub określana jako bit-flip.

\[ \sigma_x \ket{0} = \ket{1} \,\,\, \sigma_x\ket{1} = \ket{0} \]

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)
def qc():
    qml.X(wires=0)
    return qml.state()

qc()

array([0.+0.j, 1.+0.j])

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)
def qc():
    qml.PauliX(wires=0)
    return qml.state()

qc()

array([0.+0.j, 1.+0.j])

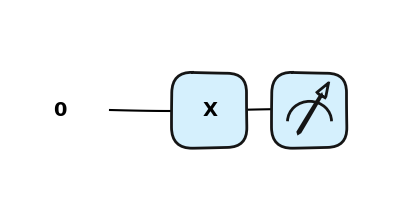

qml.draw_mpl(qc)()

Bramka Hadamarda

Bramka Hadamarda przetwarza stan \(|0\rangle\) na kombinacje liniowa (superpozycje) \(\frac{|0\rangle + |1\rangle}{\sqrt{2}}\), co oznacza, że pomiar zwróci z takim samym prawdopodobieństwem stanu 1 lub 0. Stan ten często oznaczany jest jako: \(|+\rangle\).

\[ H = \frac{1}{\sqrt{2}}\begin{pmatrix} 1 & 1 \\ 1 & -1 \\ \end{pmatrix} \]

\[ H\ket{0} = \frac{\sqrt{2}}{2} (\ket{0}+ \ket{1})\] \[ H\ket{1} = \frac{\sqrt{2}}{2}(\ket{0}- \ket{1})\]

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev)
def qc():
    qml.Hadamard(wires=0)
    return qml.state()

qc()

array([0.70710678+0.j, 0.70710678+0.j])

obwód z elementami pythona

dev = qml.device("default.qubit", wires=1)

@qml.qnode(dev)
def qc(state):
    if state==1:
        qml.X(wires=0)
    qml.Hadamard(wires=0)
    qml.PauliX(wires=0)
    qml.Hadamard(wires=0)
    return qml.state()

qc(0)

bramka SX

Bramka SX jest pierwiastkiem kwadratowym bramki X. Dwukrotne zastosowanie powinno reazlizowac bramkę X.

\[ SX = \frac{1}{2}\begin{pmatrix} 1+i & 1-i \\ 1-i & 1+i \\ \end{pmatrix} \]

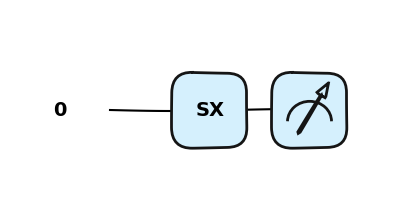

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)
def qc():
    qml.SX(wires=0)
    return qml.state()

qml.draw_mpl(qc)()
qc()

array([0.5+0.5j, 0.5-0.5j])

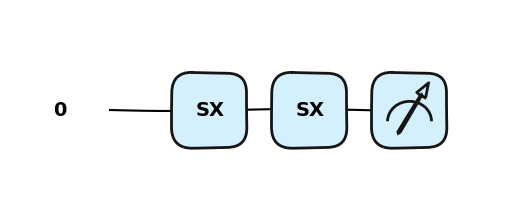

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)
def qc():
    qml.SX(wires=0)
    qml.SX(wires=0)
    return qml.state()

qml.draw_mpl(qc)()
qc()

array([0.+0.j, 1.+0.j])

Z gate

\[ Z = \begin{pmatrix} 1 & 0 \\ 0 & -1 \\ \end{pmatrix} = \begin{pmatrix} 1 & 0 \\ 0 & e^{i \pi} \\ \end{pmatrix} \]

Inne nazwy bramki: phase flip lub sign flip

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)
def qc():
    qml.Z(wires=0)
    return qml.state()

qml.draw_mpl(qc)()
qc()

array([ 1.+0.j, -0.+0.j])

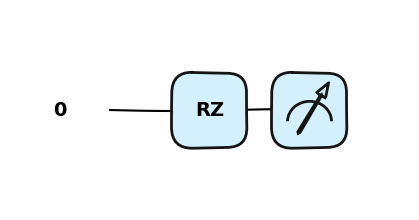

RZ gate

Bramkę PauliZ można uogólnić i sparametryzować kątem. Dla \(\phi=\pi\) otrzymujemy bramkę \(\sigma_z\).

\[ \begin{pmatrix} 1 & 0 \\ 0 & -1 \\ \end{pmatrix} = \begin{pmatrix} 1 & 0 \\ 0 & e^{i \pi} \\ \end{pmatrix} = \begin{pmatrix} 1 & 0 \\ 0 & e^{i \phi} \\ \end{pmatrix} \]

\[ R_Z(\phi) = e^{-i \phi \frac{\sigma_z}{2} } \]

\[ RZ = \begin{pmatrix} e ^{-i \frac{\phi}{2} } & 0 \\ 0 & e ^{i \frac{\phi}{2} } \\ \end{pmatrix} = \cos(\frac{\phi}{2})I_2 - \sin(\frac{\phi}{2}) i\sigma_z \]

from pennylane import numpy as np

dev = qml.device("default.qubit", wires=1)
@qml.qnode(dev)


def qc(phi):
    qml.RZ(phi=phi, wires=0)
    return qml.state()

qc(np.pi/2)

array([0.70710678-0.70710678j, 0.        +0.j        ])

qml.draw_mpl(qc)(np.pi/2)

CNOT

Jedną z bramek realizującą zadania na dwóch kubitach jest bramka CNOT, która na bazie bitu kontrolnego decyduje czy zastosować operację X do drugiego kubitu.

\[ \text{CNOT} = \begin{bmatrix} 1 \,\, \,\,\, 0 \,\,\,\,\, 0 \,\,\,\,\, 0 \\ 0\,\, \,\,\, 1 \,\,\,\,\, 0 \,\,\,\,\, 0 \\ 0\,\,\,\,\, 0\,\,\,\,\, 0 \,\,\,\,\, 1 \\ 0\,\,\,\,\, 0\,\,\,\,\, 1\,\,\,\,\, 0 \end{bmatrix} \]

\[ \text{CNOT} \ket{00} = \ket{00} \]

\[ \text{CNOT} \ket{10} = \ket{11} \]

import pennylane as qml
import pennylane.numpy as np

dev = qml.device('default.qubit', wires=2)

@qml.qnode(dev)
def circ(stan='0'):
    if stan == '1':
        qml.X(wires=0)
    qml.CNOT(wires=[0,1])
    # qml.CNOT(wires=[1,0])
    return qml.state()


state = circ()
print(state)

[1.+0.j 0.+0.j 0.+0.j 0.+0.j]

state = circ('1')
print(state)

[0.+0.j 0.+0.j 0.+0.j 1.+0.j]

Magic ;)

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=2, shots=100)

@qml.qnode(dev)
def qc():
    # qml.Hadamard(wires=0)
    qml.X(wires=0)
    qml.CNOT(wires=[0,1])
    #return qml.state()
    return qml.counts()

qc()

/Users/seba/Documents/GitHub/technologiekwantowe/.venv/lib/python3.13/site-packages/pennylane/devices/device_api.py:193: PennyLaneDeprecationWarning: Setting shots on device is deprecated. Please use the `set_shots` transform on the respective QNode instead.
  warnings.warn(

{np.str_('11'): np.int64(100)}

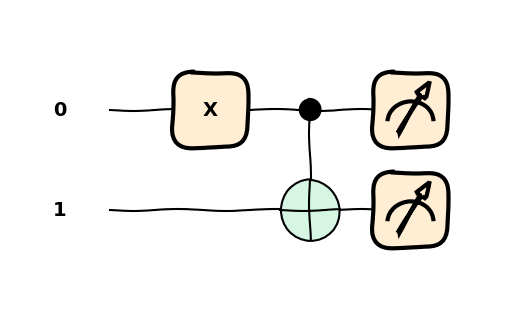

import matplotlib.pyplot as plt
qml.drawer.use_style("sketch")
fig, ax = qml.draw_mpl(qc)()
plt.show()

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=2, shots=100)

@qml.qnode(dev)
def qc():
    qml.Hadamard(wires=0)
    qml.CNOT(wires=[0,1])
    qml.X(wires=1)
    #return qml.state()
    return qml.counts()

qc()

/Users/seba/Documents/GitHub/technologiekwantowe/.venv/lib/python3.13/site-packages/pennylane/devices/device_api.py:193: PennyLaneDeprecationWarning: Setting shots on device is deprecated. Please use the `set_shots` transform on the respective QNode instead.
  warnings.warn(

{np.str_('01'): np.int64(51), np.str_('10'): np.int64(49)}

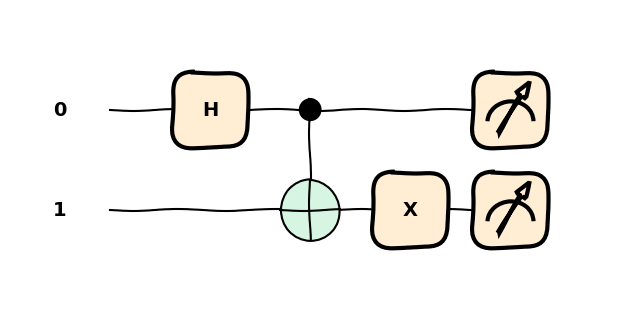

fig, ax = qml.draw_mpl(qc)()
plt.show()

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=2, shots=100)

@qml.qnode(dev)
def qc():
    qml.Hadamard(wires=0)
    qml.CNOT(wires=[0,1])
    qml.X(wires=1)
    qml.Z(wires=1)
    #return qml.state()
    return qml.counts()

qc()

/Users/seba/Documents/GitHub/technologiekwantowe/.venv/lib/python3.13/site-packages/pennylane/devices/device_api.py:193: PennyLaneDeprecationWarning: Setting shots on device is deprecated. Please use the `set_shots` transform on the respective QNode instead.
  warnings.warn(

{np.str_('01'): np.int64(43), np.str_('10'): np.int64(57)}

Zadanie - Obwód kwantowy z optymalizacją

Napisz nowy obwód kwantowy, który zawierać będzie tylko bramkę \(R_X\) dla dowolnego parametru \(\theta\)
oblicz i uzasadnij, że wartość oczekiwana dla stanu \(\ket{\psi} = R_X \, \ket{0}\) \[<Z> = cos^2(\theta /2)- sin^2(\theta /2) = cos(\theta)\]

Załóżmy, że nasz problem obliczeniowy sprowadza się do wygenerowania wartości oczekiwanej o wartości 0.5.

\[ \textbf{<Z>} = \bra{\psi} \textbf{Z} \ket{\psi} = 0.5 \]

Napisz program znajdujący rozwiązanie - szukający wagę \(\theta\) dla naszego obwodu

Zdefiniuj funkcję kosztu, którą bedziemy minimalizować \((Y - y)^2\)
zainicjuj rozwiązanie \(theta=0.01\) i przypisz do tablicy array np.array(0.01, requires_grad=True)
Jako opt wybierz spadek po gradiencie : opt = qml.GradientDescentOptimizer(stepsize=0.1)
uzyj poniższego kodu do wygenerowania pętli obiczeń


epochs = 100

for epoch in range(epochs):
    theta = opt.step(cost_fn, theta)

    if epoch % 10 == 0:
        print(f"epoka: {epoch}, theta: {theta}, koszt: {cost_fn(theta)}")

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=1)

@qml.qnode(dev)
def par_c(theta):
    qml.RX(theta, wires=0)
    return qml.expval(qml.PauliZ(0))


def cost_fn(theta):
    return (par_c(theta) - 0.5)**2

theta = np.array(0.01, requires_grad=True)

opt = qml.GradientDescentOptimizer(stepsize=0.1)

epochs = 100

for epoch in range(epochs):
    theta = opt.step(cost_fn, theta)

    if epoch % 10 == 0:
        print(f"epoka: {epoch}, theta: {theta}, koszt: {cost_fn(theta)}")

print(f"Optymalizacja zakonczona dla theta={theta}, koszt: {cost_fn(theta)}")

epoka: 0, theta: 0.010999883335916642, koszt: 0.24993950555333252
epoka: 10, theta: 0.028520883980330904, koszt: 0.2495934725570593
epoka: 20, theta: 0.07380240366299132, koszt: 0.24728524869432472
epoka: 30, theta: 0.18848123038996684, koszt: 0.23260358196368314
epoka: 40, theta: 0.44553231822816797, koszt: 0.1619107886095973
epoka: 50, theta: 0.7954652635692223, koszt: 0.03998102446252434
epoka: 60, theta: 0.9838691671205075, koszt: 0.002894983645374295
epoka: 70, theta: 1.0340365114010706, koszt: 0.00012891702079013002
epoka: 80, theta: 1.0445781695789977, koszt: 5.138079127884816e-06
epoka: 90, theta: 1.0466807535250837, koszt: 2.002500944777545e-07
Optymalizacja zakonczona dla theta=1.0470778036429096, koszt: 1.0753863888581739e-08

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=1)

@qml.qnode(dev, interface="torch")
def par_c(theta):
    qml.RX(theta, wires=0)
    return qml.expval(qml.PauliZ(0))



def cost_fn(theta):
    target = 0.5
    return (par_c(theta) - target) ** 2


import torch
from torch.optim import Adam

theta = torch.tensor(0.01, requires_grad=True)

optimizer = Adam([theta], lr=0.1)
epochs = 100

for epoch in range(epochs):
    optimizer.zero_grad()
    loss = cost_fn(theta)
    loss.backward()
    optimizer.step()
    if epoch % 10 == 0:
        print(f"epoka: {epoch}, theta: {theta}, koszt: {cost_fn(theta)}")

epoka: 0, theta: 0.1099998876452446, koszt: 0.24399264948886004
epoka: 10, theta: 1.0454959869384766, koszt: 2.169397961785511e-06
epoka: 20, theta: 1.0966185331344604, koszt: 0.0018829460500888265
epoka: 30, theta: 0.9526112079620361, koszt: 0.006329338284936267
epoka: 40, theta: 1.111649513244629, koszt: 0.0032281231974498922
epoka: 50, theta: 1.0076401233673096, koszt: 0.0011463367423114523
epoka: 60, theta: 1.0690317153930664, koszt: 0.00036201344599675586
epoka: 70, theta: 1.0343401432037354, koszt: 0.000123060304852398
epoka: 80, theta: 1.0549986362457275, koszt: 4.584717916214815e-05
epoka: 90, theta: 1.042211651802063, koszt: 1.859027886217772e-05

Jeszcze jeden przykład

Napisz obwód kwantowy, który zawierać będzie bramkę \(R_X\) dla parametru \(\theta_1\) oraz \(R_Y\) dla parametru \(\theta_2\)
oblicz i uzasadnij, że wartość oczekiwana dla stanu \(\ket{\psi} = R_Y(\theta_2) R_X(\theta_1) \, \ket{0}\)

\[<Z> = \cos(\theta_1) \cos(\theta_2)\]

Mozliwe wartości średniej zawierają się w przedziale \(-1\), \(1\).

Przyjmij załozenie, ze optymalne rozwiązanie realizowane jest dla wartości oczekiwanej = 0.4

import pennylane as qml
from pennylane import numpy as np

dev = qml.device('default.qubit', wires=1)

@qml.qnode(dev)
def par_c(theta):
    qml.RX(theta[0], wires=0)
    qml.RY(theta[1], wires=0)
    return qml.expval(qml.PauliZ(0))


def cost_fn(theta):
    return (par_c(theta) - 0.4)**2

theta = np.array([0.01, 0.02], requires_grad=True)

opt = qml.GradientDescentOptimizer(stepsize=0.1)

epochs = 100

for epoch in range(epochs):
    theta = opt.step(cost_fn, theta)

    if epoch % 10 == 0:
        print(f"epoka: {epoch}, theta: {theta}, koszt: {cost_fn(theta)}")

print(f"Optymalizacja zakonczona dla theta={theta}, koszt: {cost_fn(theta)}")

epoka: 0, theta: [0.01119924 0.02239872], koszt: 0.3596238551650218
epoka: 10, theta: [0.03468299 0.06939827], koszt: 0.35640059384126277
epoka: 20, theta: [0.10485556 0.21069384], koszt: 0.3277736421372642
epoka: 30, theta: [0.26595847 0.55025891], koszt: 0.17843868824086426
epoka: 40, theta: [0.41114867 0.91214351], koszt: 0.02593550926609833
epoka: 50, theta: [0.45600131 1.05610411], koszt: 0.0017612620807984237
epoka: 60, theta: [0.46619699 1.09390217], koszt: 0.00010074458607215528
epoka: 70, theta: [0.4685347  1.10295946], koszt: 5.557697121461739e-06
epoka: 80, theta: [0.469078   1.10508776], koszt: 3.040948516747214e-07
epoka: 90, theta: [0.46920476 1.10558565], koszt: 1.6607272093790385e-08
Optymalizacja zakonczona dla theta=[0.46923296 1.10569646], koszt: 1.2125189676042736e-09

klasyczne dane

import pennylane as qml
import pennylane.numpy as np


N = 3
wires = range(N)
dev = qml.device('default.qubit', wires)

@qml.qnode(dev)
def basis_encoding(features):
    qml.BasisEmbedding(features, wires)
    return qml.probs()

basis_encoding([1,1,1])

array([0., 0., 0., 0., 0., 0., 0., 1.])

\[ \ket{111} = \ket{1}\otimes \ket{1} \otimes \ket{1} = [0 0 0 0 0 0 0 1]^T\]

basis_encoding(7)

array([0., 0., 0., 0., 0., 0., 0., 1.])

n_wires = 4
dev = qml.device('default.qubit', wires= n_wires)

@qml.qnode(dev)
def circ(features):
    for i in range(len(features)):
        if features[i] == 1:
            qml.X(i)
    qml.Barrier()
    qml.Hadamard(1)
    qml.CNOT([1,3])
    return qml.state()

circ([1,0,1,0])

array([0.        +0.j, 0.        +0.j, 0.        +0.j, 0.        +0.j,
       0.        +0.j, 0.        +0.j, 0.        +0.j, 0.        +0.j,
       0.        +0.j, 0.        +0.j, 0.70710678+0.j, 0.        +0.j,
       0.        +0.j, 0.        +0.j, 0.        +0.j, 0.70710678+0.j])

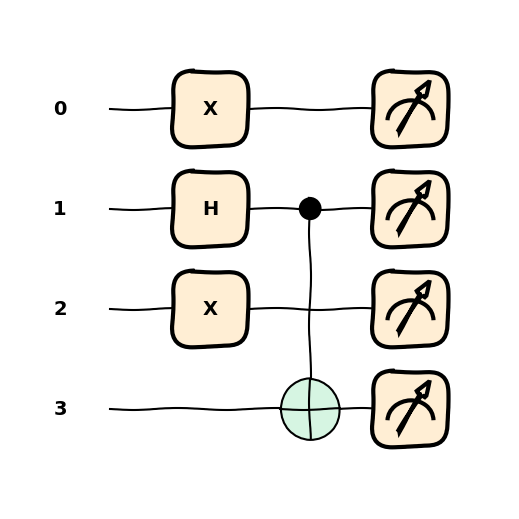

qml.draw_mpl(circ, level='device', scale=0.7)([1,0,1,0])

Amplitude encoding

import pennylane as qml
N = 3
wires = range(N)

dev = qml.device("default.qubit", wires)

@qml.qnode(dev)
def circuit(features):
    qml.AmplitudeEmbedding(features, wires)
    return qml.state()

circuit([0.625,0.0,0.0,0.0,0.625,0.375,0.25,0.125])

array([0.625+0.j, 0.   +0.j, 0.   +0.j, 0.   +0.j, 0.625+0.j, 0.375+0.j,
       0.25 +0.j, 0.125+0.j])

import pennylane as qml
N = 3
wires = range(N)

dev = qml.device("default.qubit", wires)

@qml.qnode(dev)
def circuit(f=None):
    qml.AmplitudeEmbedding(features=f, wires=dev.wires, normalize=True, pad_with=0)
    return qml.expval(qml.PauliZ(0)), qml.state()

vect = [0.1, -0.3, 0.5, 0.4, 0.2]

norm = np.linalg.norm(vect)
norm_vec = np.round([i / norm for i in vect], 4)
print(f"Vec: {vect}, Norm{norm_vec}")

Vec: [0.1, -0.3, 0.5, 0.4, 0.2], Norm[ 0.1348 -0.4045  0.6742  0.5394  0.2697]

res, state = circuit(f=norm_vec)
res2, state2 = circuit(f=vect)

state.real, state2.real

(array([ 0.13479815, -0.40449446,  0.67419077,  0.53939262,  0.26969631,
         0.        ,  0.        ,  0.        ]),
 array([ 0.13483997, -0.40451992,  0.67419986,  0.53935989,  0.26967994,
         0.        ,  0.        ,  0.        ]))

qml.draw_mpl(circuit)(norm_vec)

import pennylane as qml
import pennylane.numpy as np
from sklearn.preprocessing import normalize
from sklearn.datasets import load_wine

data = load_wine()

X = data.data
y = data.target

def prepare_ampl(x, target_len = 16):
    padded = np.pad(x, (0, target_len - len(x)), mode="constant")
    normed = padded / np.linalg.norm(padded)
    return np.array(normed, requires_grad=True)

x0 = X[0]
features = prepare_ampl(x0)

features

tensor([1.32644724e-02, 1.59397384e-03, 2.26512072e-03, 1.45415157e-02,
        1.18382852e-01, 2.61001565e-03, 2.85237424e-03, 2.61001565e-04,
        2.13461994e-03, 5.25731723e-03, 9.69434383e-04, 3.65402190e-03,
        9.92738094e-01, 0.00000000e+00, 0.00000000e+00, 0.00000000e+00], requires_grad=True)

n_qubits = 4
dev = qml.device('default.qubit', wires = n_qubits)

@qml.qnode(dev)
def amplitude_circ(x):
    qml.AmplitudeEmbedding(features=x, wires=range(n_qubits), normalize=False)
    return qml.state()

state = amplitude_circ(features)
state

tensor([1.32644724e-02+0.j, 1.59397384e-03+0.j, 2.26512072e-03+0.j,
        1.45415157e-02+0.j, 1.18382852e-01+0.j, 2.61001565e-03+0.j,
        2.85237424e-03+0.j, 2.61001565e-04+0.j, 2.13461994e-03+0.j,
        5.25731723e-03+0.j, 9.69434383e-04+0.j, 3.65402190e-03+0.j,
        9.92738094e-01+0.j, 0.00000000e+00+0.j, 0.00000000e+00+0.j,
        0.00000000e+00+0.j], requires_grad=True)

@qml.qnode(dev)
def amp_circ(x):
    qml.AmplitudeEmbedding(features=x, wires=range(n_qubits), normalize=True, pad_with=0)
    return qml.state()

state2 = amp_circ(X[0])
state2

array([1.32644724e-02+0.j, 1.59397384e-03+0.j, 2.26512072e-03+0.j,
       1.45415157e-02+0.j, 1.18382852e-01+0.j, 2.61001565e-03+0.j,
       2.85237424e-03+0.j, 2.61001565e-04+0.j, 2.13461994e-03+0.j,
       5.25731723e-03+0.j, 9.69434383e-04+0.j, 3.65402190e-03+0.j,
       9.92738094e-01+0.j, 0.00000000e+00+0.j, 0.00000000e+00+0.j,
       0.00000000e+00+0.j])

Angle encoding

\[ x \to R_k(x) \ket{0} = e^{-i\,x \frac{\sigma_k}{2}} \ket{0} \]

import pennylane as qml
import pennylane.numpy as np

features= [np.pi/3, np.pi/4]
dev = qml.device('default.qubit', wires=2)

@qml.qnode(dev)
def circ(features):
    qml.AngleEmbedding(features=features, rotation='Y', wires=range(2))
    return qml.probs(wires=[0,1])

np.round(circ(features), 3)

tensor([0.64 , 0.11 , 0.213, 0.037], requires_grad=True)

qml.draw_mpl(circ)(features)

import pennylane as qml
import pennylane.numpy as np
from sklearn.preprocessing import normalize
from sklearn.datasets import load_wine

data = load_wine()

X = data.data
y = data.target

from sklearn.preprocessing import MinMaxScaler

scaler = MinMaxScaler(feature_range=(0, np.pi))
X_scaled = scaler.fit_transform(X)

X_scaled[0]

array([2.64555171, 0.60224207, 1.7975958 , 0.80968883, 1.94642154,
       1.97162022, 1.80277047, 0.88913   , 1.86315274, 1.16871536,
       1.43031861, 3.04953133, 1.76350458])

dev = qml.device('default.qubit', wires=13)

@qml.qnode(dev)
def emb(x):
    qml.AngleEmbedding(x, wires=range(len(x)), rotation='Y')
    return qml.expval(qml.PauliZ(0))

emb(X_scaled[0])

np.float64(-0.8794737512064895)

@qml.qnode(dev)
def emb(x):
    qml.AngleEmbedding(x, wires=range(len(x)), rotation='Y')
    return [qml.expval(qml.PauliZ(i)) for i in range(len(x))]

emb(X_saled[0])

[np.float64(-0.8794737512064895),
 np.float64(0.8240675736145868),
 np.float64(-0.2248601123708277),
 np.float64(0.6897237772781044),
 np.float64(-0.3668542188130566),
 np.float64(-0.39017706326055457),
 np.float64(-0.2298992328822939),
 np.float64(0.6300878435817112),
 np.float64(-0.28820944852718955),
 np.float64(0.3913341989876884),
 np.float64(0.14001614496862924),
 np.float64(-0.9957653484788057),
 np.float64(-0.1915177132878786)]

Modele

from sklearn.datasets import make_blobs
import numpy as np
from sklearn.svm import LinearSVC
from sklearn.preprocessing import StandardScaler
from sklearn.pipeline import Pipeline
from sklearn.model_selection import train_test_split
import matplotlib.pyplot as plt

X, y = make_blobs(n_samples=100, centers=2, random_state=6)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2)

svm_clf = Pipeline(
    [
        ('scaler', StandardScaler()),
        ("linear_svc", LinearSVC(C=1, loss='hinge'))
    ]
)

svm_clf.fit(X_train, y_train)

Pipeline(steps=[('scaler', StandardScaler()),
                ('linear_svc', LinearSVC(C=1, loss='hinge'))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

print(f"Test acc: {svm_clf.score(X_test, y_test):.2f}")

Test acc: 1.00

def plot_svm_pipeline(pipeline, X, y):
    scaler = pipeline.named_steps['scaler']
    svc = pipeline.named_steps['linear_svc']
    X_scaled = scaler.transform(X)
    plt.scatter(X_scaled[:, 0], X_scaled[:, 1], c=y, cmap='autumn')
    ax = plt.gca()

    xlim = ax.get_xlim()
    ylim = ax.get_ylim()

    xx = np.linspace(xlim[0], xlim[1], 30)
    yy = np.linspace(ylim[0], ylim[1], 30)
    YY, XX = np.meshgrid(yy, xx)
    xy = np.vstack([XX.ravel(), YY.ravel()]).T
    Z = svc.decision_function(xy).reshape(XX.shape)

    ax.contour(XX, YY, Z, color='k', levels=[-1,0,1], linestyles=['--','-','--'])

    plt.title("SVM Decision Boundry")
    plt.show()

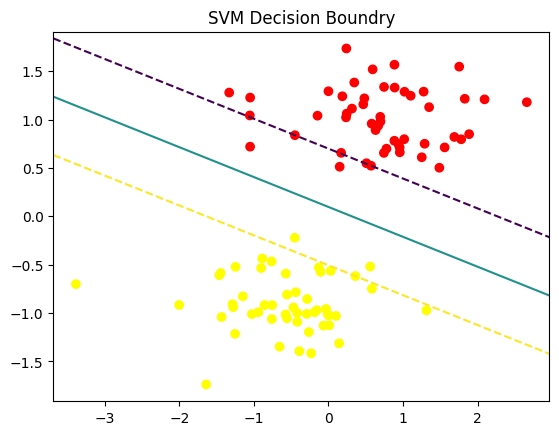

plot_svm_pipeline(svm_clf, X, y)

/var/folders/53/b8z3c5xs0l51w2mzflnyk6400000gn/T/ipykernel_20306/3794771256.py:17: UserWarning: The following kwargs were not used by contour: 'color'
  ax.contour(XX, YY, Z, color='k', levels=[-1,0,1], linestyles=['--','-','--'])

Kernel trick

Dla prawdziwych danych trudno oczekiwać aby były one liniowo separowalne.

Dlatego jednym z rozwiązań jest stworzenie odwzorowania do wyżej wymiarowej przestrzeni tak by dane w niej były już liniowo separowalne. Obliczenie takiej transformacji dla dowolnych danych jest bardzo trudne, dlatego możemy zastosować tzw kernel trick. Potrzebujemy tylko obliczyć iloczyn skalarny: \[ K(x,x') = <\phi(x), \phi(x')>\] bez jawnego wyznaczania \(\phi\).

x, x’ wektory wejściowe z oryginalnej przestrzeni
\(\phi(x)\) odwzorowanie do przestrzeni o wyższym wymiarze
\(K(x, x')\) funkcja jądrowa - kernel function - oblicza iloczy skalarny w zadanej przestrzeni.

Linear - \(K(x, x') = x^{T}x'\)
Polynomial - \(K(x,x') = (x^{T}x' +c)^d\)
RBF - \(K(x,x') = exp(-\gamma \, |x-x'|^2)\)

from sklearn.preprocessing import PolynomialFeatures
from sklearn.metrics import accuracy_score
from sklearn.datasets import make_moons
from sklearn.svm import SVC

X,y = make_moons(n_samples=200, noise=0.2, random_state=42)
X_train, X_test, y_train, y_test = train_test_split(X,y, test_size=0.3, random_state=44)

poly_svm_clf = Pipeline([
  #  ('polu_features', PolynomialFeatures(degree=3)),
    ('scaler', StandardScaler()),
    ("linear_svc", LinearSVC(C=1, loss='hinge'))
])

poly_svm_clf.fit(X_train, y_train)

Pipeline(steps=[('scaler', StandardScaler()),
                ('linear_svc', LinearSVC(C=1, loss='hinge'))])

print(f"Test acc: {poly_svm_clf.score(X_test, y_test):.2f}")

Test acc: 0.82

linear_svm = SVC(kernel='linear', C=1)
linear_svm.fit(X_train, y_train)
y_pred_linear = linear_svm.predict(X_test)
acc_linear = accuracy_score(y_test, y_pred_linear)

rbf_svm = SVC(kernel='rbf', C=1, gamma='scale')
rbf_svm.fit(X_train, y_train)
y_pred_rbf = rbf_svm.predict(X_test)
acc_rbf = accuracy_score(y_test, y_pred_rbf)

def plot_decision_boundry(model, X, y, title):
    h = 0.02
    x_min, x_max = X[:, 0].min(), X[:, 0].max()+1
    y_min, y_max = X[:, 1].min(), X[:, 1].max()+1

    xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))
    Z = model.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    plt.contourf(xx, yy, Z, cmap=plt.cm.coolwarm, alpha=0.8)
    plt.scatter(X[:, 0], X[:, 1], c=y, cmap=plt.cm.coolwarm, edgecolors='k')
    plt.title(title)
    plt.xlabel("Feature 1")
    plt.ylabel("Feature 2")
    plt.show()

plot_decision_boundry(linear_svm, X_test, y_test, "linear SVM")

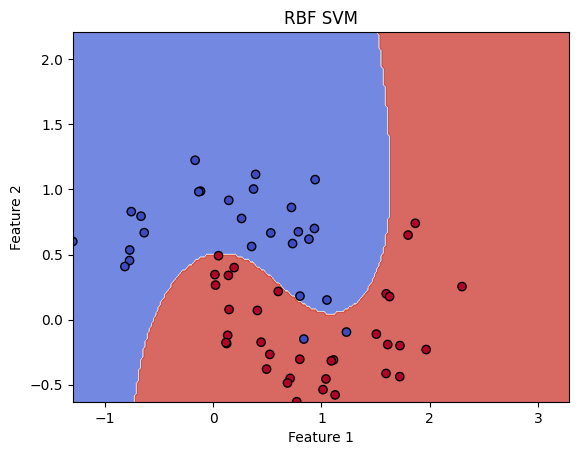

plot_decision_boundry(rbf_svm, X_test, y_test, "RBF SVM")

Idea swap testu

Swap test służy do obliczania wartości

\[ |\langle \psi |\phi \rangle |^2 \]

czyli kwadratu modułu iloczynu skalarnego dwóch stanów kwantowych \(|\psi \rangle\) i \(|\phi \rangle\) .

🔧 Obwód swap testu

Swap test używa dodatkowego kubitu kontrolnego oraz bramki SWAP

Kontrolny kubit realizowany jest w stanie \(|0\rangle\).

\[ \ket{\psi_0} = \ket{0} \otimes \ket{\psi} \otimes \ket{\phi} \]

🎛️ Jak to działa

Zastosuj Hadamarda (zamiana bazy) na kontrolny (ancilla) kubit \[ \ket{\psi_1} = (\ket{0} + \ket{1}) \otimes \ket{\psi} \otimes \ket{\phi} \]
Zastosuj CSWAP (3 kubitowa bramka - controll = ancilla)
Zastosuj Hadamarda (powrót do bazy)
Pomiar ancilla kubitu.

Prawdopodobieństwo, że kontrolny kubit da wynik \(0\), wynosi: \[P(0)=\frac{1+|\langle \psi |\phi \rangle |^2}{2}\]

Prawdopodobieństwo, że kontrolny kubit da wynik 1, wynosi: \[P(1)=\frac{1-|\langle \psi |\phi \rangle |^2}{2}\]

Dzięki temu, mierząc kontrolny kubit, możemy wyznaczyć overlap między stanami.

import pennylane as qml
import pennylane.numpy as np

dev_test = qml.device('default.qubit', wires=['ancilla','phi','psi'], shots=5000)

@qml.qnode(dev_test)
def swap_test():
    qml.Hadamard(wires='ancilla')

    qml.X(wires=['phi'])
    qml.Hadamard(wires=['psi'])

    qml.CSWAP(wires=['ancilla', 'phi', 'psi'])
    qml.Hadamard(wires='ancilla')
    return qml.sample(wires='ancilla')

res = swap_test()

print(f"P(0) = {np.mean(res==0)}, P(1) = {np.mean(res == 1)}")
print(f"{2*np.mean(res==0) - 1}")

weryfikacja

dev = qml.device('default.qubit', wires=1)

@qml.qnode(dev)
def phi():
    qml.X(wires=0)
    return qml.state()

@qml.qnode(dev)
def psi():
    qml.Hadamard(wires=0)
    return qml.state()

def theory(phi, psi):
    inner = np.vdot(phi, psi)
    return float(np.abs(inner)**2)

theory(psi(), phi())

Quantum Embedding

Kwantowy Embedding reprezentuje klasyczne dane jako stan (wektor) w przestrzeni Hilberta. Odwzorowanie, które generuje embedding nazywamy quantum feature map.

Feature map: \(\phi: X \to F\) gdzie \(F\) to nowa przestrzeń Hilberta stanów. \[ x \to \ket{\phi(x)} \]

W naszym przypadku to odwzorowanie realizują \(U_{\phi}(x)\) macierze kodowania kątowego. \[ \ket{0} \to U_{\phi}(x)\ket{0} \]

from sklearn.preprocessing import MinMaxScaler

scaler = MinMaxScaler(feature_range=(0, np.pi))
X_scaled = scaler.fit_transform(X)

y_scaled = 2 * y -1

X_train, X_test, y_train, y_test = train_test_split(X_scaled, y_scaled)

Rozważmy model kwantowy w postaci: \[ f(x) = \braket{\phi(x) | M | \phi{x} } \]

Model może być realizowany jako wariacyjny obwód kwantowy.

Zamiast jednak trenować parametry dla takiego obwodu możemy wykorzystać kwantowy kernel który realizuje się przez SWAP test.

Zamiast SWAP testu możemy wykorzystać inny obwód Szczegóły tutaj

from pennylane.templates import AngleEmbedding


n_qubits = 2
dev_kernel = qml.device('lightning.qubit', wires= n_qubits)



projector = np.zeros((2 ** n_qubits, 2 ** n_qubits))
projector[0, 0] = 1

@qml.qnode(dev_kernel)
def kernel(x1, x2):
    AngleEmbedding(x1, wires=range(n_qubits))
    qml.adjoint(AngleEmbedding)(x2, wires=range(n_qubits))
    return qml.expval(qml.Hermitian(projector, wires=range(n_qubits)))

import pennylane.numpy as np

X_train = np.array(X_train, requires_grad=False)
X_test = np.array(X_test, requires_grad=False)

y_train = np.array(y_train, requires_grad=False)
y_test = np.array(y_test, requires_grad=False)

kernel(X_train[0], X_train[0]), kernel(X_test[0], X_test[1])

(array(1.), array(0.85153324))

def kernel_matrix(A, B):
    return np.array([[kernel(a,b) for b in B] for a in A])

svm = SVC(kernel=kernel_matrix).fit(X_train, y_train)

predictions = svm.predict(X_test)

print(f"model qsvm {accuracy_score(predictions, y_test):.4f}")

model qsvm 0.8400

svm.predict(X_test[:4]), y_test[:4]

(array([-1, -1, -1, -1]), tensor([-1, -1, -1, -1], requires_grad=False))

	steps steps: list of tuples List of (name of step, estimator) tuples that are to be chained in sequential order. To be compatible with the scikit-learn API, all steps must define `fit`. All non-last steps must also define `transform`. See :ref:`Combining Estimators ` for more details.	[('scaler', ...), ('linear_svc', ...)]
	transform_input transform_input: list of str, default=None The names of the :term:`metadata` parameters that should be transformed by the pipeline before passing it to the step consuming it. This enables transforming some input arguments to ``fit`` (other than ``X``) to be transformed by the steps of the pipeline up to the step which requires them. Requirement is defined via :ref:`metadata routing `. For instance, this can be used to pass a validation set through the pipeline. You can only set this if metadata routing is enabled, which you can enable using ``sklearn.set_config(enable_metadata_routing=True)``. .. versionadded:: 1.6	None
	memory memory: str or object with the joblib.Memory interface, default=None Used to cache the fitted transformers of the pipeline. The last step will never be cached, even if it is a transformer. By default, no caching is performed. If a string is given, it is the path to the caching directory. Enabling caching triggers a clone of the transformers before fitting. Therefore, the transformer instance given to the pipeline cannot be inspected directly. Use the attribute ``named_steps`` or ``steps`` to inspect estimators within the pipeline. Caching the transformers is advantageous when fitting is time consuming. See :ref:`sphx_glr_auto_examples_neighbors_plot_caching_nearest_neighbors.py` for an example on how to enable caching.	None
	verbose verbose: bool, default=False If True, the time elapsed while fitting each step will be printed as it is completed.	False

	penalty penalty: {'l1', 'l2'}, default='l2' Specifies the norm used in the penalization. The 'l2' penalty is the standard used in SVC. The 'l1' leads to ``coef_`` vectors that are sparse.	'l2'
	loss loss: {'hinge', 'squared_hinge'}, default='squared_hinge' Specifies the loss function. 'hinge' is the standard SVM loss (used e.g. by the SVC class) while 'squared_hinge' is the square of the hinge loss. The combination of ``penalty='l1'`` and ``loss='hinge'`` is not supported.	'hinge'
	dual dual: "auto" or bool, default="auto" Select the algorithm to either solve the dual or primal optimization problem. Prefer dual=False when n_samples > n_features. `dual="auto"` will choose the value of the parameter automatically, based on the values of `n_samples`, `n_features`, `loss`, `multi_class` and `penalty`. If `n_samples` < `n_features` and optimizer supports chosen `loss`, `multi_class` and `penalty`, then dual will be set to True, otherwise it will be set to False. .. versionchanged:: 1.3 The `"auto"` option is added in version 1.3 and will be the default in version 1.5.	'auto'
	tol tol: float, default=1e-4 Tolerance for stopping criteria.	0.0001
	C C: float, default=1.0 Regularization parameter. The strength of the regularization is inversely proportional to C. Must be strictly positive. For an intuitive visualization of the effects of scaling the regularization parameter C, see :ref:`sphx_glr_auto_examples_svm_plot_svm_scale_c.py`.	1
	multi_class multi_class: {'ovr', 'crammer_singer'}, default='ovr' Determines the multi-class strategy if `y` contains more than two classes. ``"ovr"`` trains n_classes one-vs-rest classifiers, while ``"crammer_singer"`` optimizes a joint objective over all classes. While `crammer_singer` is interesting from a theoretical perspective as it is consistent, it is seldom used in practice as it rarely leads to better accuracy and is more expensive to compute. If ``"crammer_singer"`` is chosen, the options loss, penalty and dual will be ignored.	'ovr'
	fit_intercept fit_intercept: bool, default=True Whether or not to fit an intercept. If set to True, the feature vector is extended to include an intercept term: `[x_1, ..., x_n, 1]`, where 1 corresponds to the intercept. If set to False, no intercept will be used in calculations (i.e. data is expected to be already centered).	True
	intercept_scaling intercept_scaling: float, default=1.0 When `fit_intercept` is True, the instance vector x becomes ``[x_1, ..., x_n, intercept_scaling]``, i.e. a "synthetic" feature with a constant value equal to `intercept_scaling` is appended to the instance vector. The intercept becomes intercept_scaling * synthetic feature weight. Note that liblinear internally penalizes the intercept, treating it like any other term in the feature vector. To reduce the impact of the regularization on the intercept, the `intercept_scaling` parameter can be set to a value greater than 1; the higher the value of `intercept_scaling`, the lower the impact of regularization on it. Then, the weights become `[w_x_1, ..., w_x_n, w_intercept*intercept_scaling]`, where `w_x_1, ..., w_x_n` represent the feature weights and the intercept weight is scaled by `intercept_scaling`. This scaling allows the intercept term to have a different regularization behavior compared to the other features.	1
	class_weight class_weight: dict or 'balanced', default=None Set the parameter C of class i to ``class_weight[i]C`` for SVC. If not given, all classes are supposed to have weight one. The "balanced" mode uses the values of y to automatically adjust weights inversely proportional to class frequencies in the input data as ``n_samples / (n_classes np.bincount(y))``.	None
	verbose verbose: int, default=0 Enable verbose output. Note that this setting takes advantage of a per-process runtime setting in liblinear that, if enabled, may not work properly in a multithreaded context.	0
	random_state random_state: int, RandomState instance or None, default=None Controls the pseudo random number generation for shuffling the data for the dual coordinate descent (if ``dual=True``). When ``dual=False`` the underlying implementation of :class:`LinearSVC` is not random and ``random_state`` has no effect on the results. Pass an int for reproducible output across multiple function calls. See :term:`Glossary `.	None
	max_iter max_iter: int, default=1000 The maximum number of iterations to be run.	1000

	steps steps: list of tuples List of (name of step, estimator) tuples that are to be chained in sequential order. To be compatible with the scikit-learn API, all steps must define `fit`. All non-last steps must also define `transform`. See :ref:`Combining Estimators ` for more details.	[('scaler', ...), ('linear_svc', ...)]
	transform_input transform_input: list of str, default=None The names of the :term:`metadata` parameters that should be transformed by the pipeline before passing it to the step consuming it. This enables transforming some input arguments to ``fit`` (other than ``X``) to be transformed by the steps of the pipeline up to the step which requires them. Requirement is defined via :ref:`metadata routing `. For instance, this can be used to pass a validation set through the pipeline. You can only set this if metadata routing is enabled, which you can enable using ``sklearn.set_config(enable_metadata_routing=True)``. .. versionadded:: 1.6	None
	memory memory: str or object with the joblib.Memory interface, default=None Used to cache the fitted transformers of the pipeline. The last step will never be cached, even if it is a transformer. By default, no caching is performed. If a string is given, it is the path to the caching directory. Enabling caching triggers a clone of the transformers before fitting. Therefore, the transformer instance given to the pipeline cannot be inspected directly. Use the attribute ``named_steps`` or ``steps`` to inspect estimators within the pipeline. Caching the transformers is advantageous when fitting is time consuming. See :ref:`sphx_glr_auto_examples_neighbors_plot_caching_nearest_neighbors.py` for an example on how to enable caching.	None
	verbose verbose: bool, default=False If True, the time elapsed while fitting each step will be printed as it is completed.	False

	penalty penalty: {'l1', 'l2'}, default='l2' Specifies the norm used in the penalization. The 'l2' penalty is the standard used in SVC. The 'l1' leads to ``coef_`` vectors that are sparse.	'l2'
	loss loss: {'hinge', 'squared_hinge'}, default='squared_hinge' Specifies the loss function. 'hinge' is the standard SVM loss (used e.g. by the SVC class) while 'squared_hinge' is the square of the hinge loss. The combination of ``penalty='l1'`` and ``loss='hinge'`` is not supported.	'hinge'
	dual dual: "auto" or bool, default="auto" Select the algorithm to either solve the dual or primal optimization problem. Prefer dual=False when n_samples > n_features. `dual="auto"` will choose the value of the parameter automatically, based on the values of `n_samples`, `n_features`, `loss`, `multi_class` and `penalty`. If `n_samples` < `n_features` and optimizer supports chosen `loss`, `multi_class` and `penalty`, then dual will be set to True, otherwise it will be set to False. .. versionchanged:: 1.3 The `"auto"` option is added in version 1.3 and will be the default in version 1.5.	'auto'
	tol tol: float, default=1e-4 Tolerance for stopping criteria.	0.0001
	C C: float, default=1.0 Regularization parameter. The strength of the regularization is inversely proportional to C. Must be strictly positive. For an intuitive visualization of the effects of scaling the regularization parameter C, see :ref:`sphx_glr_auto_examples_svm_plot_svm_scale_c.py`.	1
	multi_class multi_class: {'ovr', 'crammer_singer'}, default='ovr' Determines the multi-class strategy if `y` contains more than two classes. ``"ovr"`` trains n_classes one-vs-rest classifiers, while ``"crammer_singer"`` optimizes a joint objective over all classes. While `crammer_singer` is interesting from a theoretical perspective as it is consistent, it is seldom used in practice as it rarely leads to better accuracy and is more expensive to compute. If ``"crammer_singer"`` is chosen, the options loss, penalty and dual will be ignored.	'ovr'
	fit_intercept fit_intercept: bool, default=True Whether or not to fit an intercept. If set to True, the feature vector is extended to include an intercept term: `[x_1, ..., x_n, 1]`, where 1 corresponds to the intercept. If set to False, no intercept will be used in calculations (i.e. data is expected to be already centered).	True
	intercept_scaling intercept_scaling: float, default=1.0 When `fit_intercept` is True, the instance vector x becomes ``[x_1, ..., x_n, intercept_scaling]``, i.e. a "synthetic" feature with a constant value equal to `intercept_scaling` is appended to the instance vector. The intercept becomes intercept_scaling * synthetic feature weight. Note that liblinear internally penalizes the intercept, treating it like any other term in the feature vector. To reduce the impact of the regularization on the intercept, the `intercept_scaling` parameter can be set to a value greater than 1; the higher the value of `intercept_scaling`, the lower the impact of regularization on it. Then, the weights become `[w_x_1, ..., w_x_n, w_intercept*intercept_scaling]`, where `w_x_1, ..., w_x_n` represent the feature weights and the intercept weight is scaled by `intercept_scaling`. This scaling allows the intercept term to have a different regularization behavior compared to the other features.	1
	class_weight class_weight: dict or 'balanced', default=None Set the parameter C of class i to ``class_weight[i]C`` for SVC. If not given, all classes are supposed to have weight one. The "balanced" mode uses the values of y to automatically adjust weights inversely proportional to class frequencies in the input data as ``n_samples / (n_classes np.bincount(y))``.	None
	verbose verbose: int, default=0 Enable verbose output. Note that this setting takes advantage of a per-process runtime setting in liblinear that, if enabled, may not work properly in a multithreaded context.	0
	random_state random_state: int, RandomState instance or None, default=None Controls the pseudo random number generation for shuffling the data for the dual coordinate descent (if ``dual=True``). When ``dual=False`` the underlying implementation of :class:`LinearSVC` is not random and ``random_state`` has no effect on the results. Pass an int for reproducible output across multiple function calls. See :term:`Glossary `.	None
	max_iter max_iter: int, default=1000 The maximum number of iterations to be run.	1000
